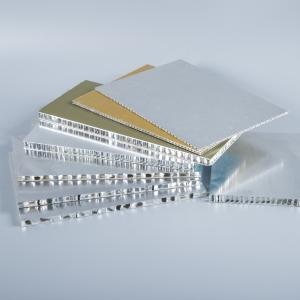

PE And PVDF Coating Aluminum Honeycomb Panels Honeycomb Construction Panels
1. Descriptions:
Sandwich sandwich aluminum honeycomb panel is made by composite pressing of aluminum alloy plate, stainless steel plate, aluminum honeycomb core and PU/epoxy resin adhesive. Various surface treatments can be carried out.
Aluminum honeycomb panels have the characteristics of light weight, high strength, good hardness, and sound and heat insulation. Among them, aluminum honeycomb panel is a breakthrough from aerospace applications to commercial applications, and is one of the best environmentally friendly composite materials with perfect strength to weight ratio.
Aluminum honeycomb panels are widely used in fields such as construction and transportation.
2. Specifications:
| Aluminum honeycomb panel |
| Panel total thickness | 5mm-50mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Surface finish | PE/PVDF/Anodic oxidation |
| Color | White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as requested |
| Applications | Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core |
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 |
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 |
| Alloy | Al3003 |
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted |
| Technical Data Sheet |
| Specification | Side length (mm) | Density (kg/m³)
| Compression strength (MPa)
| L-Shear strength (MPa)
| W-Shear strength (MPa)
|
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
| BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
3. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb panel of quality control of parts, processing, testing, packaging, etc.
4. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
5. Aluminum honeycomb panel has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain
6. Aluminum honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is aluminum honeycomb panel usd for?
A: Aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb panel?
A: Aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of aluminum honeycomb panel?
A: Aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
